  • combination beam roll forming line

TF combination beam roll forming line

Equipment overview:

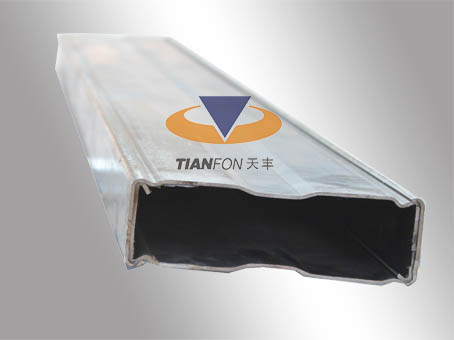

Combination beam is precision roll formed mating piece. This machine is mainly used for producing combination beam for storage system.
  • Product description
  • Product Details

Components

 Equipment brief introduction

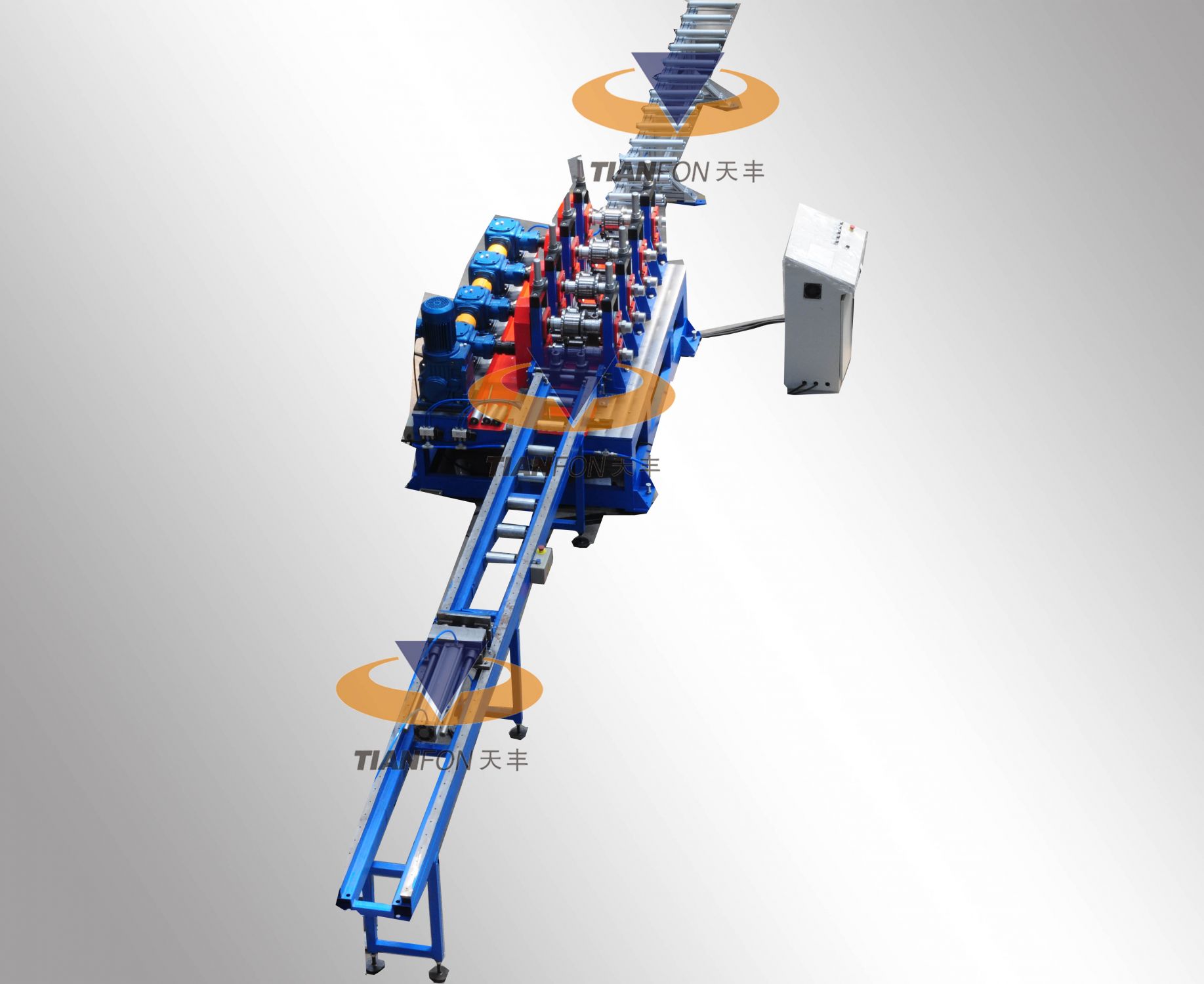

combination beam roll forming line

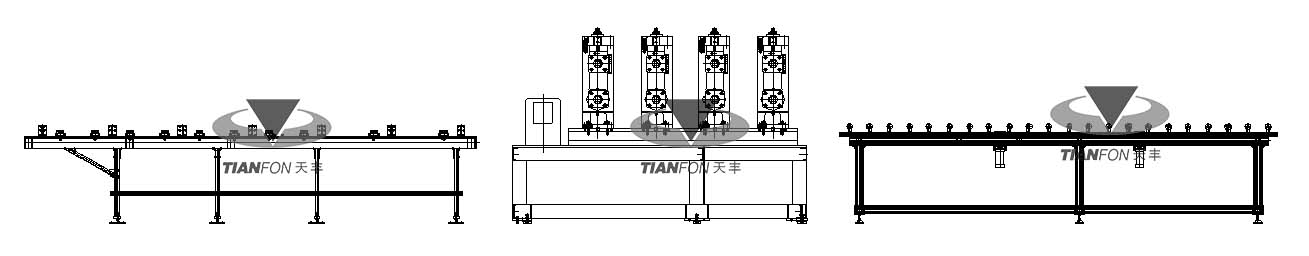

Manual combine-Loading-Guiding-Roll Forming-Runt Out Table

Specification

Brief introduction

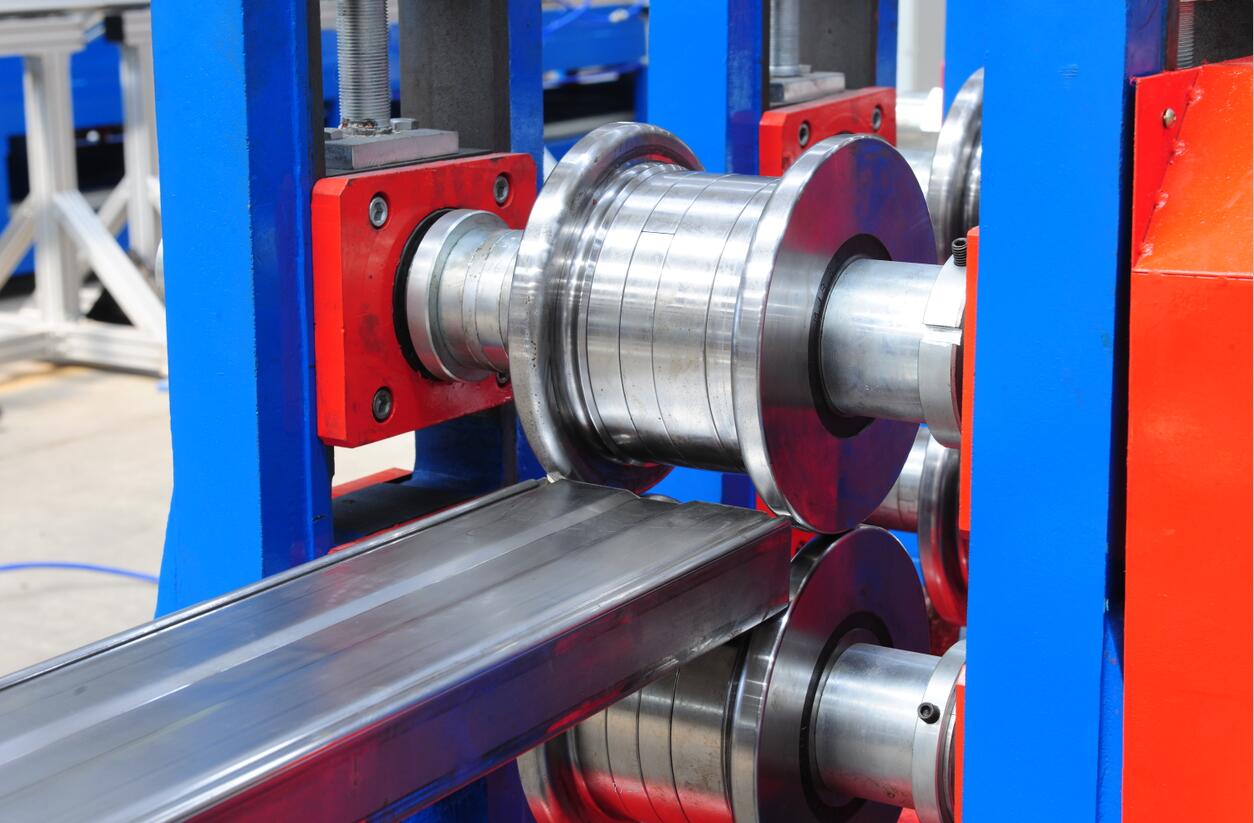

Use casting raft structure, profile steel welding base, there is guiding device at the feeding entrance, three phase AC motor& reducer drive, frequency invert control the speed, gear box transmission. The roller use unitized structure, speed difference and roll forming resistance force is small, it has slightly abrasion the steel surface.

 TF combination beam roll forming line

This roll former use quick change cassette model, it is easy for producing different profile in future. This machine can produce different size profile by changing spacer and some part of rollers

Technical parameters:




 Item

Unit

Parameter

Remark

1

Material

specification

Type



Galvanized steel



Strength

MPa

≤350



Width

mm





Coil I.D.

mm





Coil weight







2

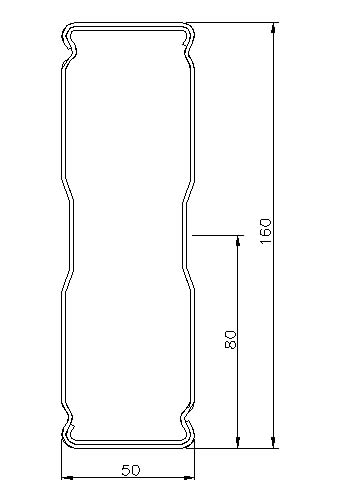

Profile width

mm

 70-160mm



3

Line speed

m/min

5



4

Roller material



D2 with quenching treatment



5

 Roller drive







6

Operation system



Windows2000



7

Total power

Kw

About 4KW



8

Electrical control system



PLC automatic control system



9

Production line dimension(L*W*H)

m





Components

 combination beam roll forming line

combination beam roll forming line
