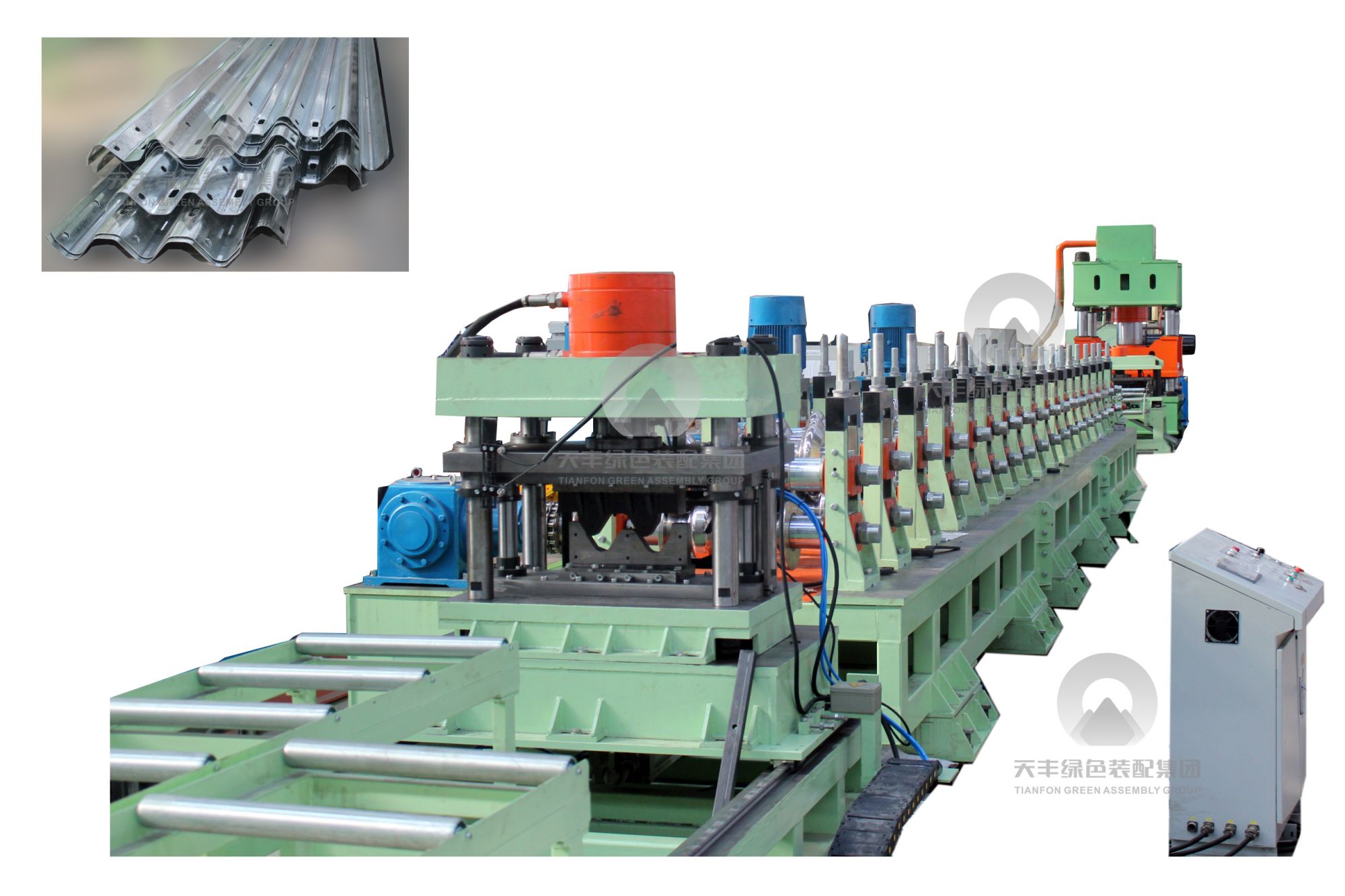

TF Highway guardrail roll forming line

Equipment overview:
Uncoiling –leveling- Looping—Feeding—punching —Roll forming—Cutting –Discharging
  • Product description
  • Product Details

Components

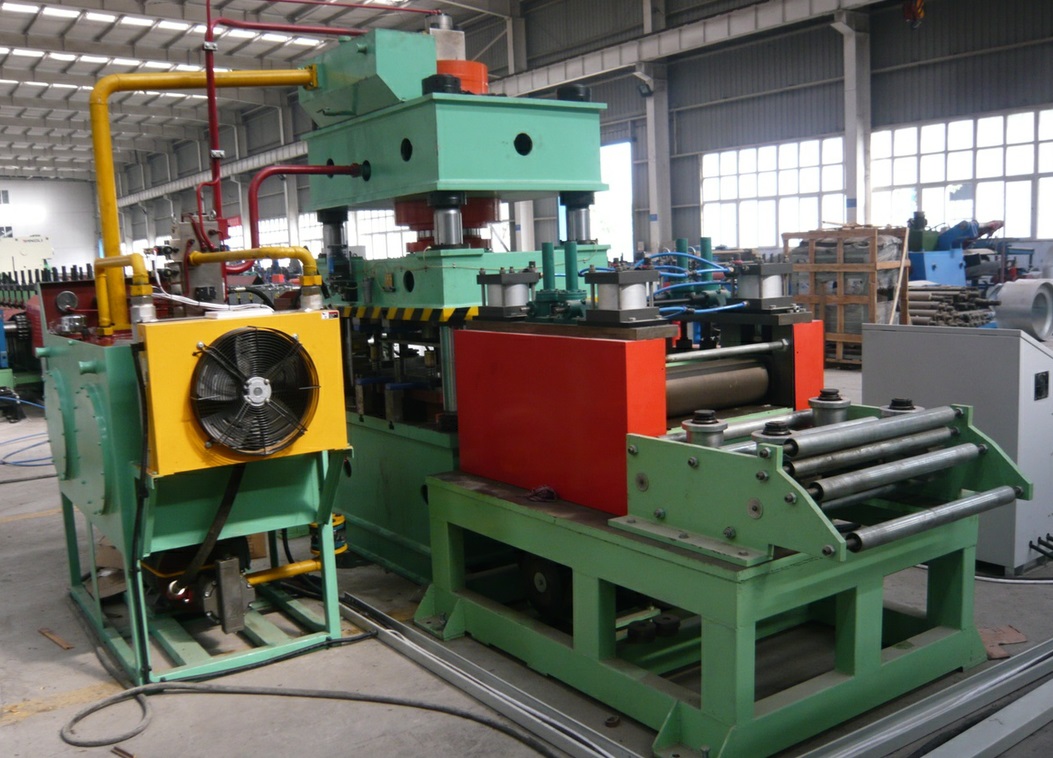

Uncoiling→Spade Feeding→Leveling→Servo feeding→Hydraulic punching →Roll forming →Tracking cut→Products discharging


Specification

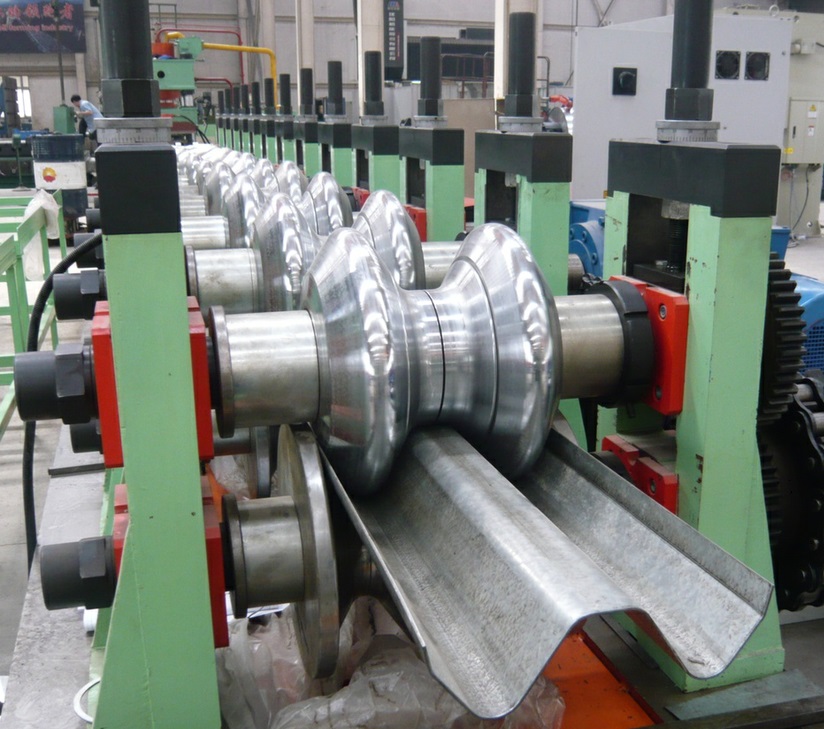

TF high speed guard rail roll forming line , it is able to make continuous production  intergrated of  uncoiling , leveling ,punching ,roll forming and cutting  .
The final products has  high precision on dimension and  punching  easy for installion.the production line  has features of high efficiency  and less operators.


Highway guardrail roll forming line
                      Highway guardrail roll forming line
Highway guardrail roll forming line

Technical parameters:


Serial number Item Unit Parameters Remark


Suitable material
Type   HR Sheet;Galvanized Sheet
Thickness MPa ≤350
Coil internal diameter mm 2.6-3.0
Coil weight mm 508
Thickness T 5
2 Specification mm 100-320
3 Line speed m/min 25
4 Roller material   Cr12
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 22KW
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) Mm

Highway guardrail roll forming line   Highway guardrail roll forming line

Highway guardrail roll forming line


Components

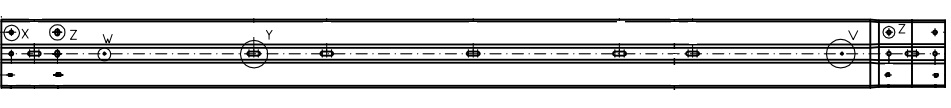

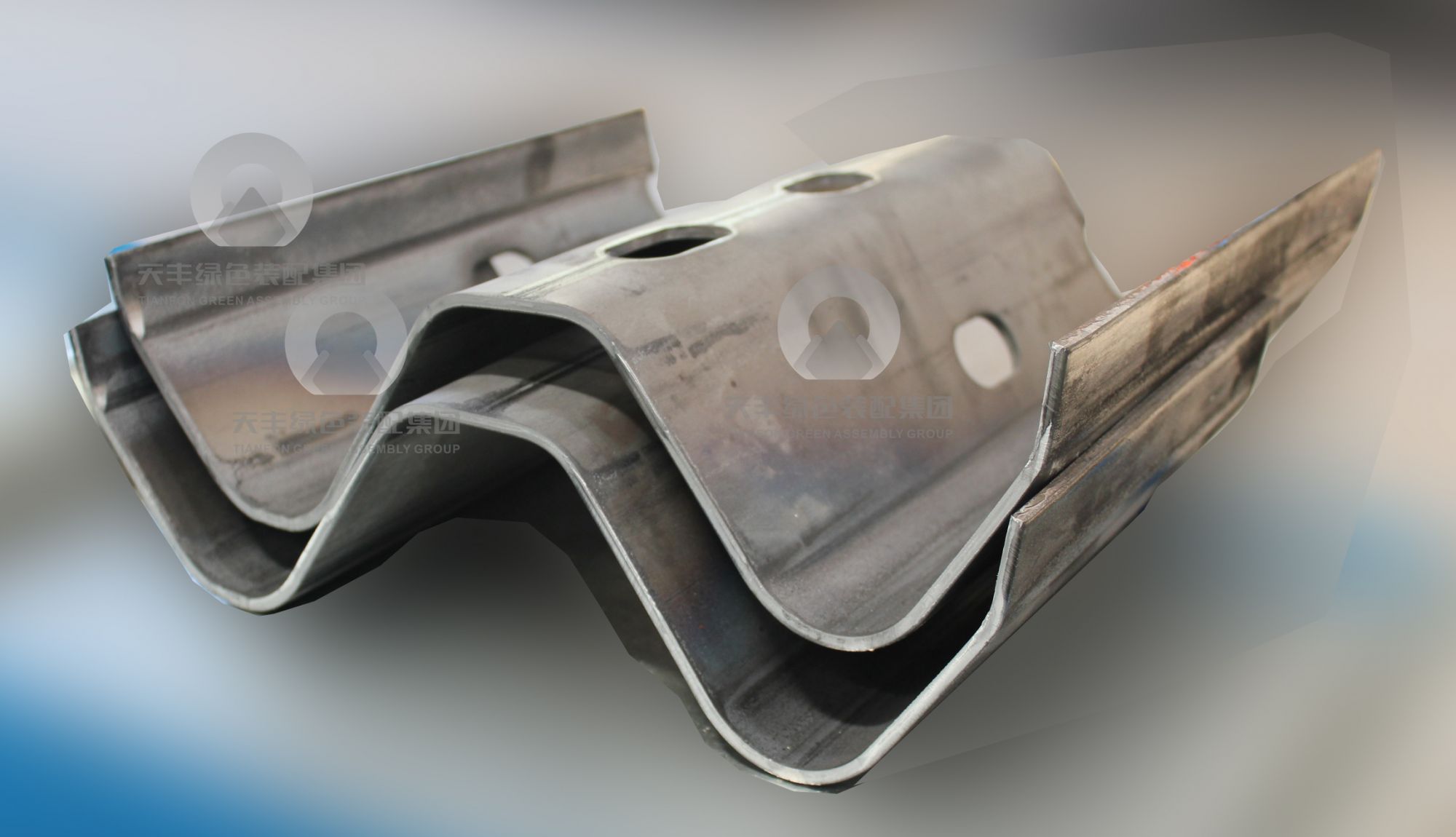

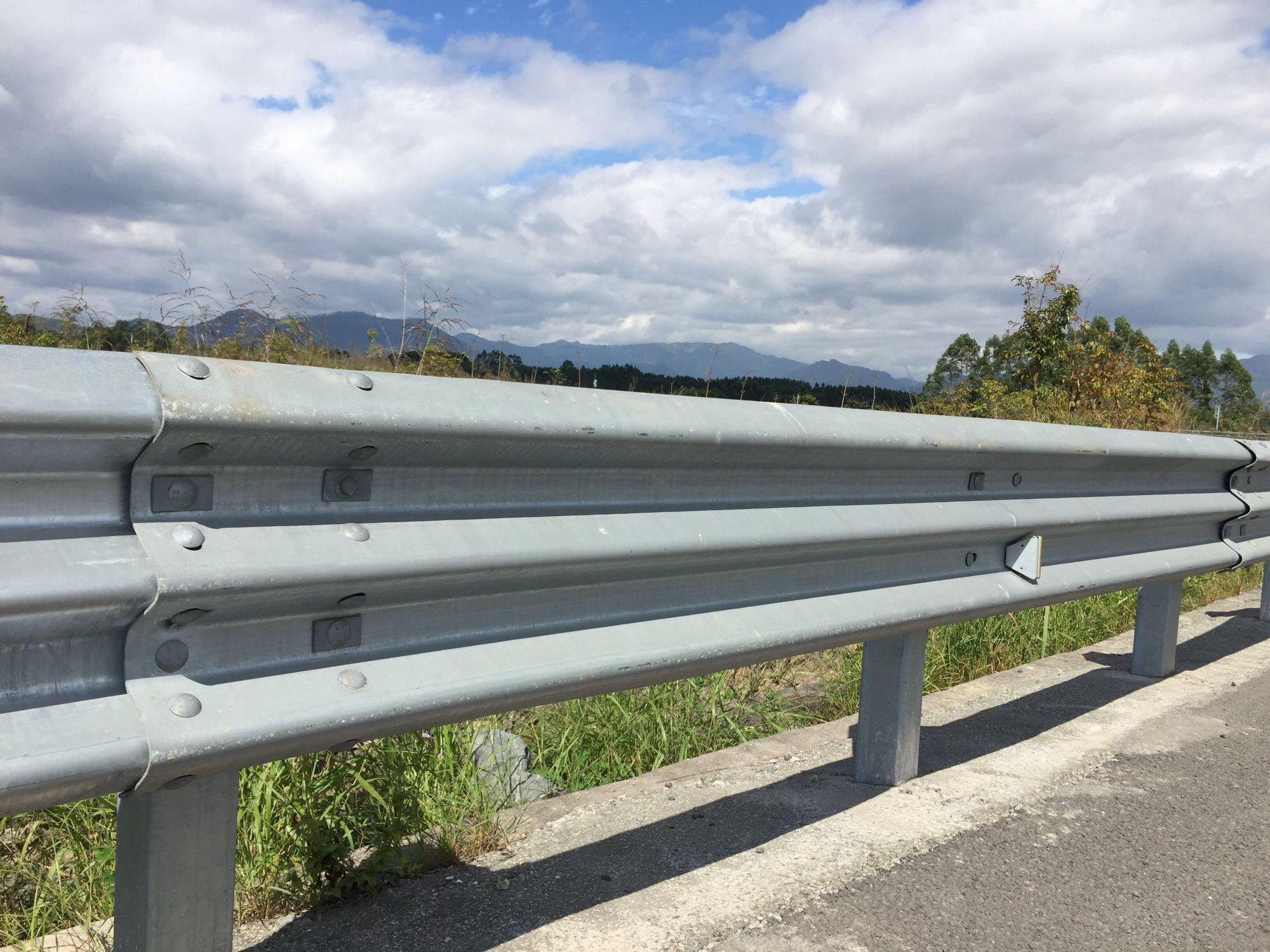

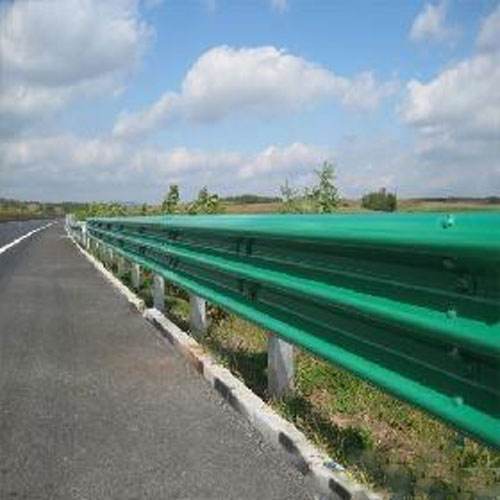

 Highway guardrail  section
Highway guardrail roll forming line

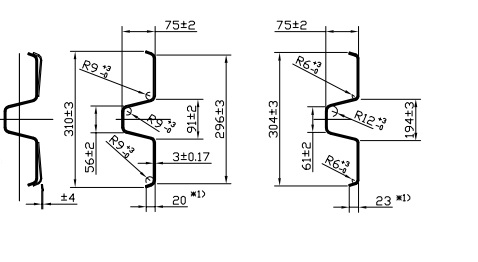

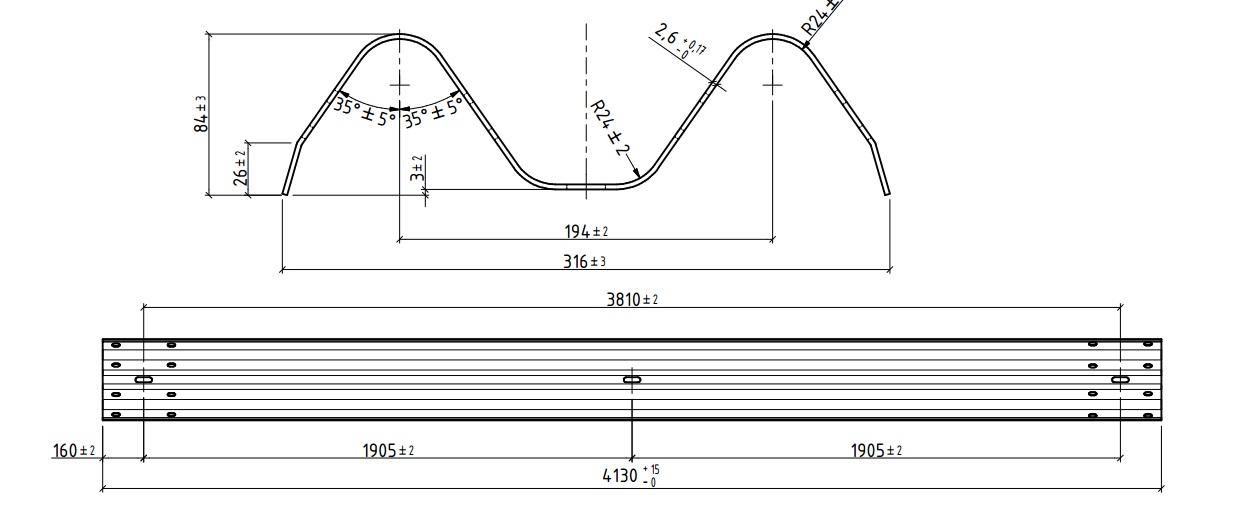

Highway guardrail section
