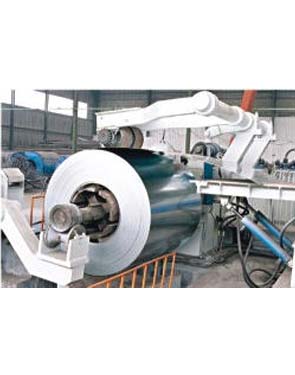

Uncoiler,Slitting,Recoiler Production Line

Equipment overview:
This production line is used to make the steel coil to be uncolied, section shear, and recoiler. Then the coil is change into standard coils, which have the requirement length.
  • Product description
  • Product Details

Components



Specification

Equipment overview:

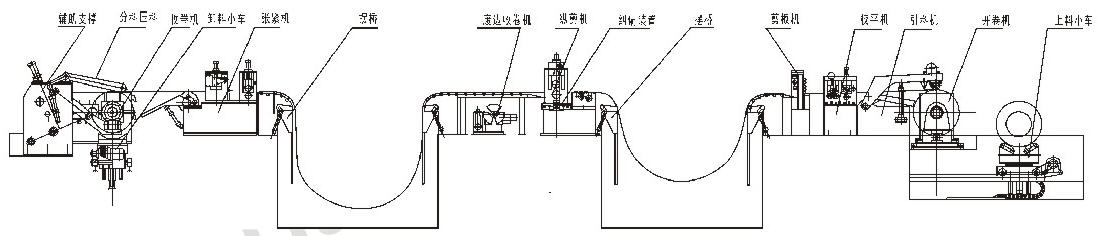

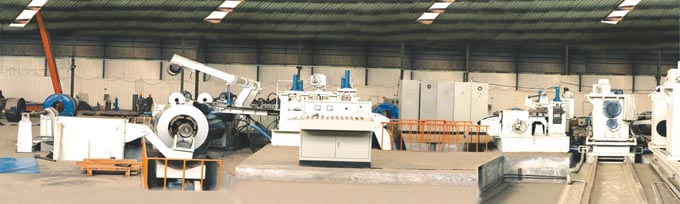

This production line is used to make the steel coil to be uncolied, section shear, and recoiler. Then the coil is change into standard coils, which have the requirement length. This line is fit to machining cold carbon roll steel and hot carbon roll steel, tin, stainless steel and many metal plated coil. production line incloud loading car, uncoiler, leveler, slitting shear, waster coil recoiler, pinch machine, recoiler, unloading set, ect. Whole line is controlled by PLC, human and machine screen display, high automatic operation, to be controled is conveniently.

Technical parameters:


Item
Coil thickness
(mm)
Coil width
(mm)

Number of slitting
Width accuracy
(mm)

Slitting speed
(mm)

Coil weight(mm)
Remark
TFS-0.5×1300
0.15-0.5
500-1300
20
±0.05
50-120
6
Can be customized on-demand
TFS-1.5×1300
0.25-1.5
500-1300
30-80
±0.05
50-120
6/15
TFS-2×300
0.25-2
100-300
20-6
±0.05
50-120
2
TFS-2×450
0.25-2
100-450
30-6
±0.05
50-120
3
TFS-2×650
0.25-2
100-650
30-6
±0.05
50-120
5
TFS-2×1300
0.25-2
500-1300
30-12
±0.05
50-160
6/15
TFS-2×1600
0.25-2
500-1600
30-12
±0.05
50-160
6/15
TFS-3×1600
0.35-2
500-1600
30-8
±0.1
50-120
6/15
TFS-4×1600
0.5-4
900-1600
30-6
±0.1
30-80
20
TFS-6×1600
0.6-6
900-1600
20-6
±0.05
30-60
30
TFS-8×2000
2-8
900-2000
10-3
±0.2
20-40
30
TFS-14×2000
4-14
900-2000
4-2
±0.5
8-20
30
