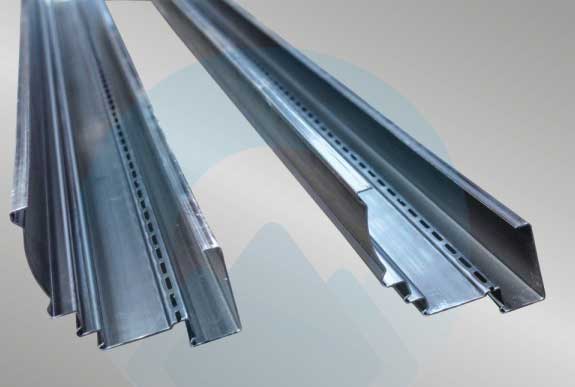

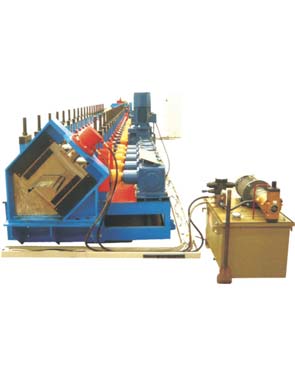

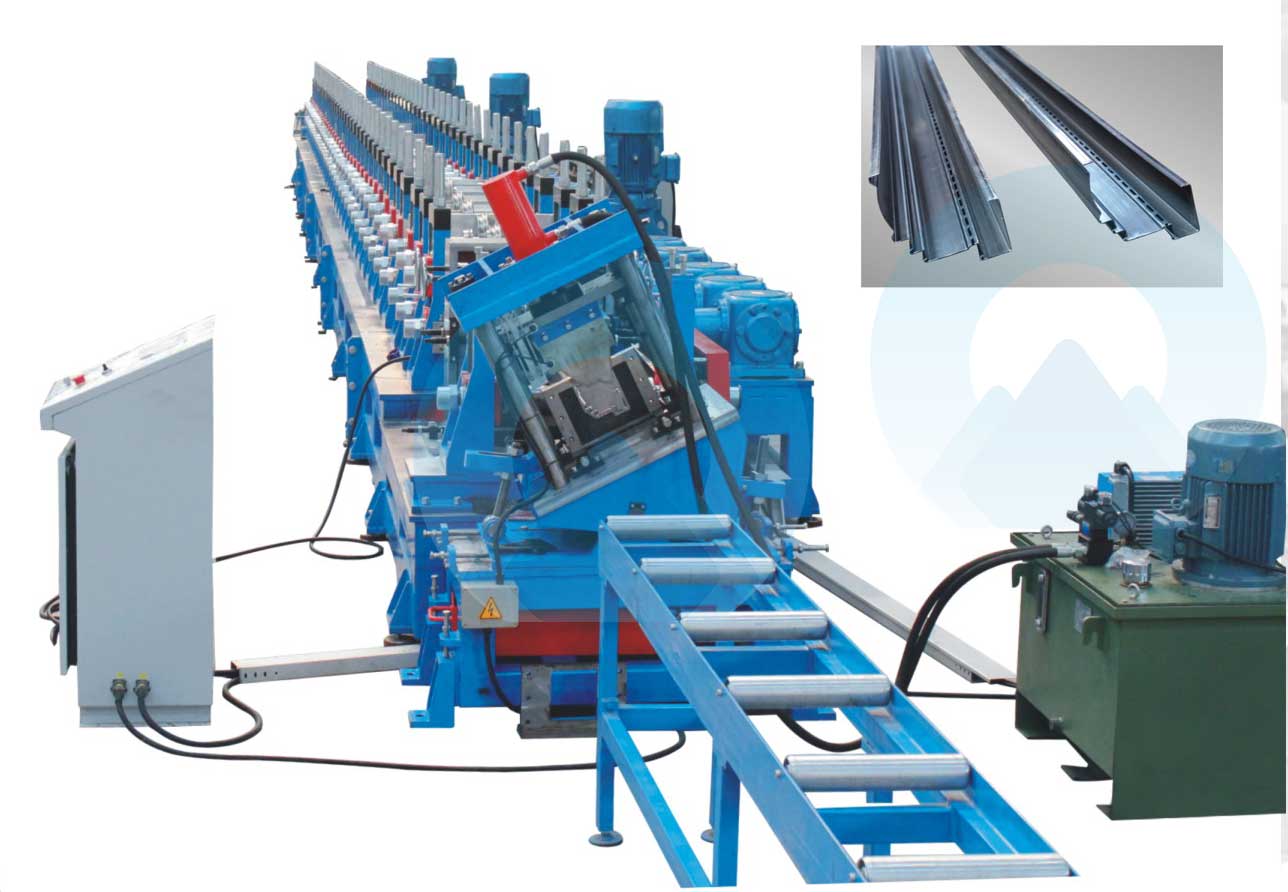

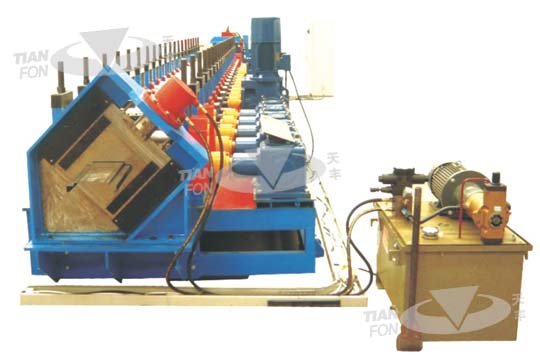

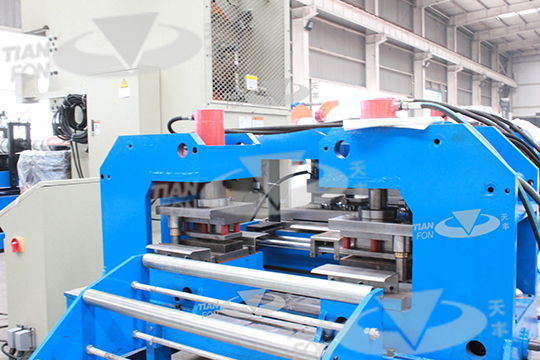

Door Frame Roll Forming Line

Equipment overview:
 The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check.
  • Product description
  • Product Details

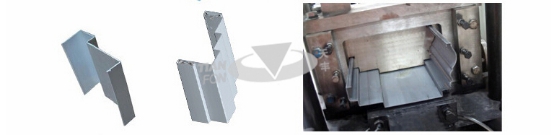

Components

                                    Un-coil----roll forming----saw cutting----outlet finished product

Specification

Equipment overview:
The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.

Technical parameters:

Serial number Item Unit Parameters Remark

1

Suitable material
Type   Q235
strength MPa ≤350
Thickness mm 1.5-2.0
Coil internal diameter mm 508
Coil weight T 3

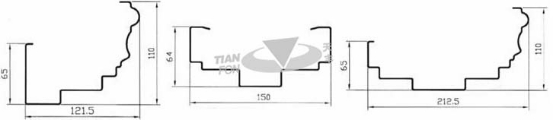

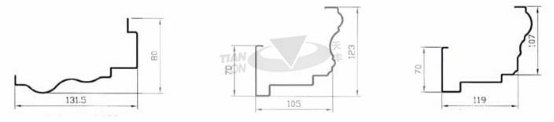

2 Specification mm 205
3 Line speed m/min 0-15
4 Roller material   GCr15,HRC58-62
5 Roller driven type
6 Operating system
7 Total motor power Kw
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) Mm

Components
