  • Bus Bar Roll Forming Line

Bus Bar Roll Forming Line

Equipment overview:

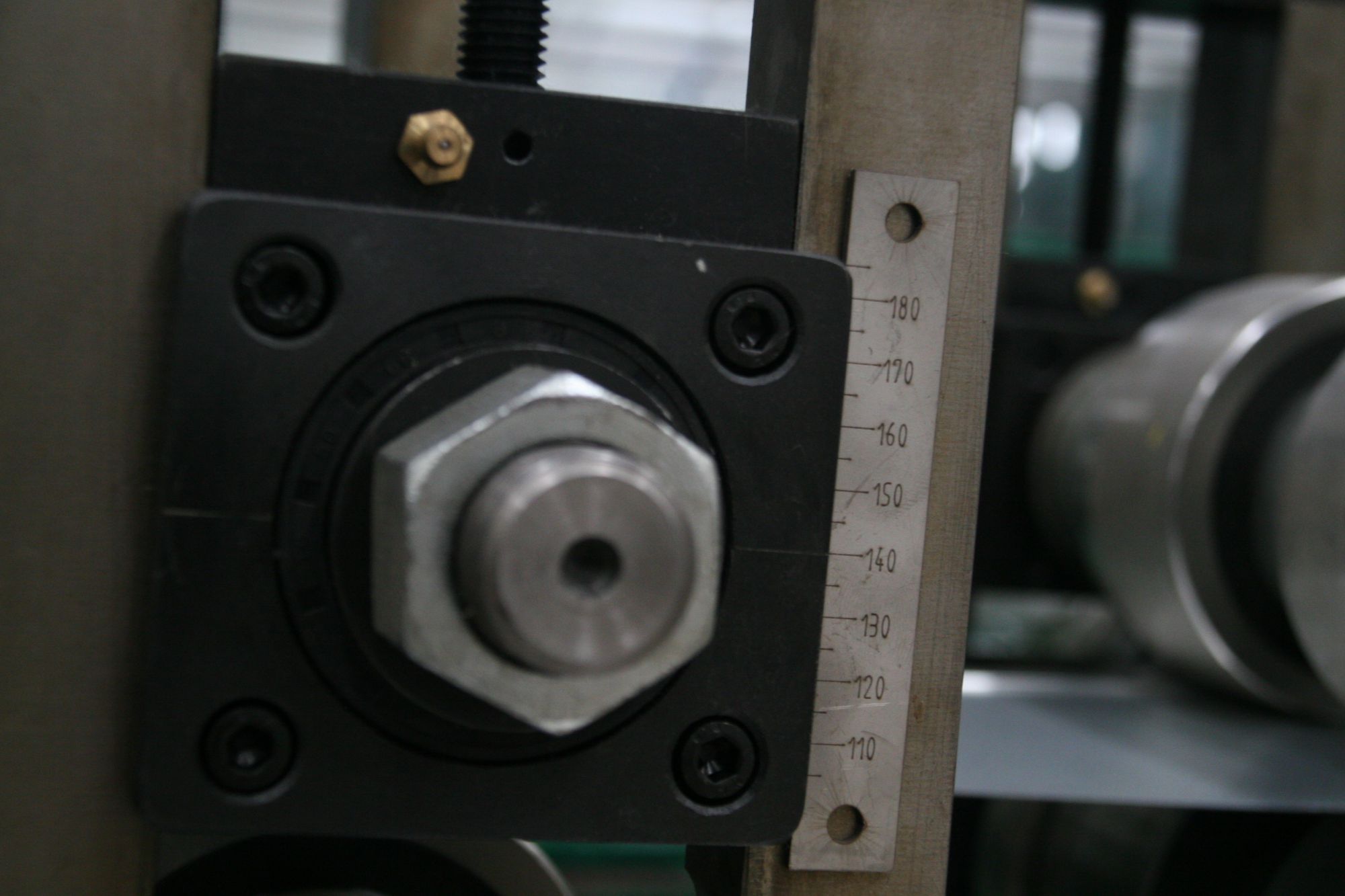

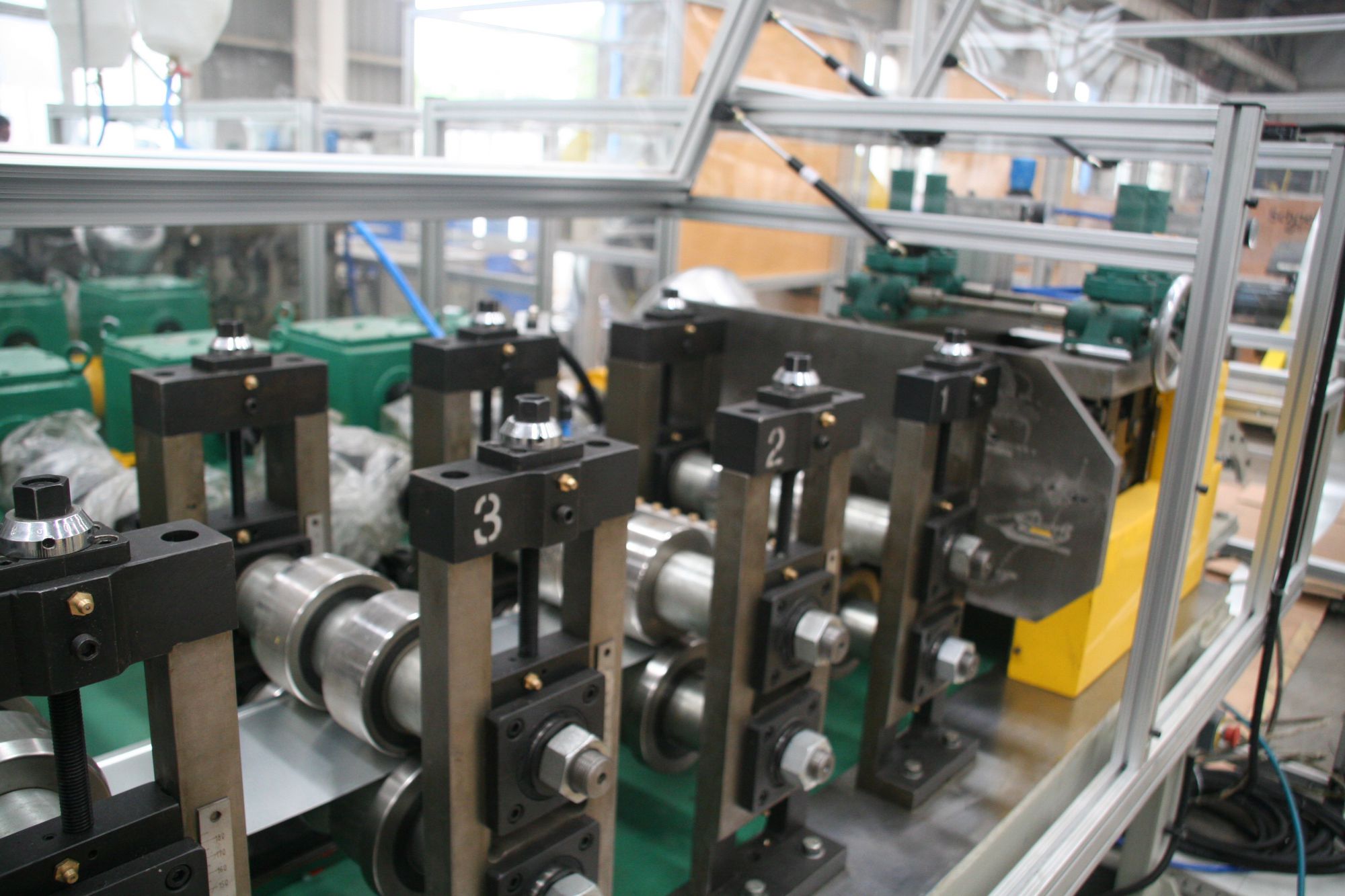

1. .The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures stability of the machine.
  • Product description
  • Product Details

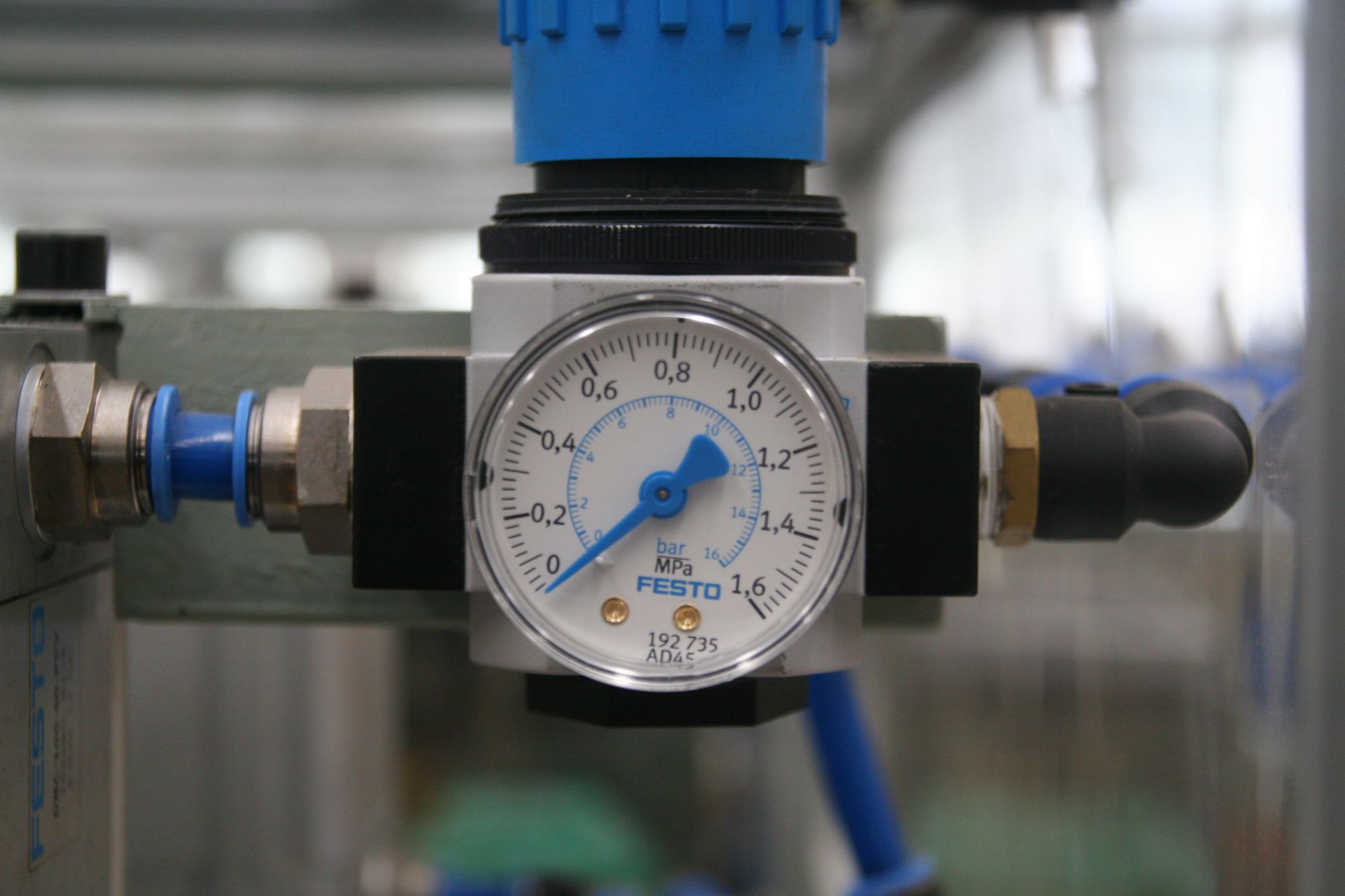

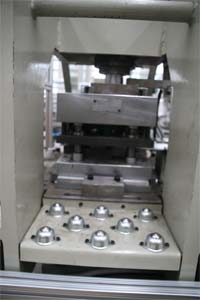

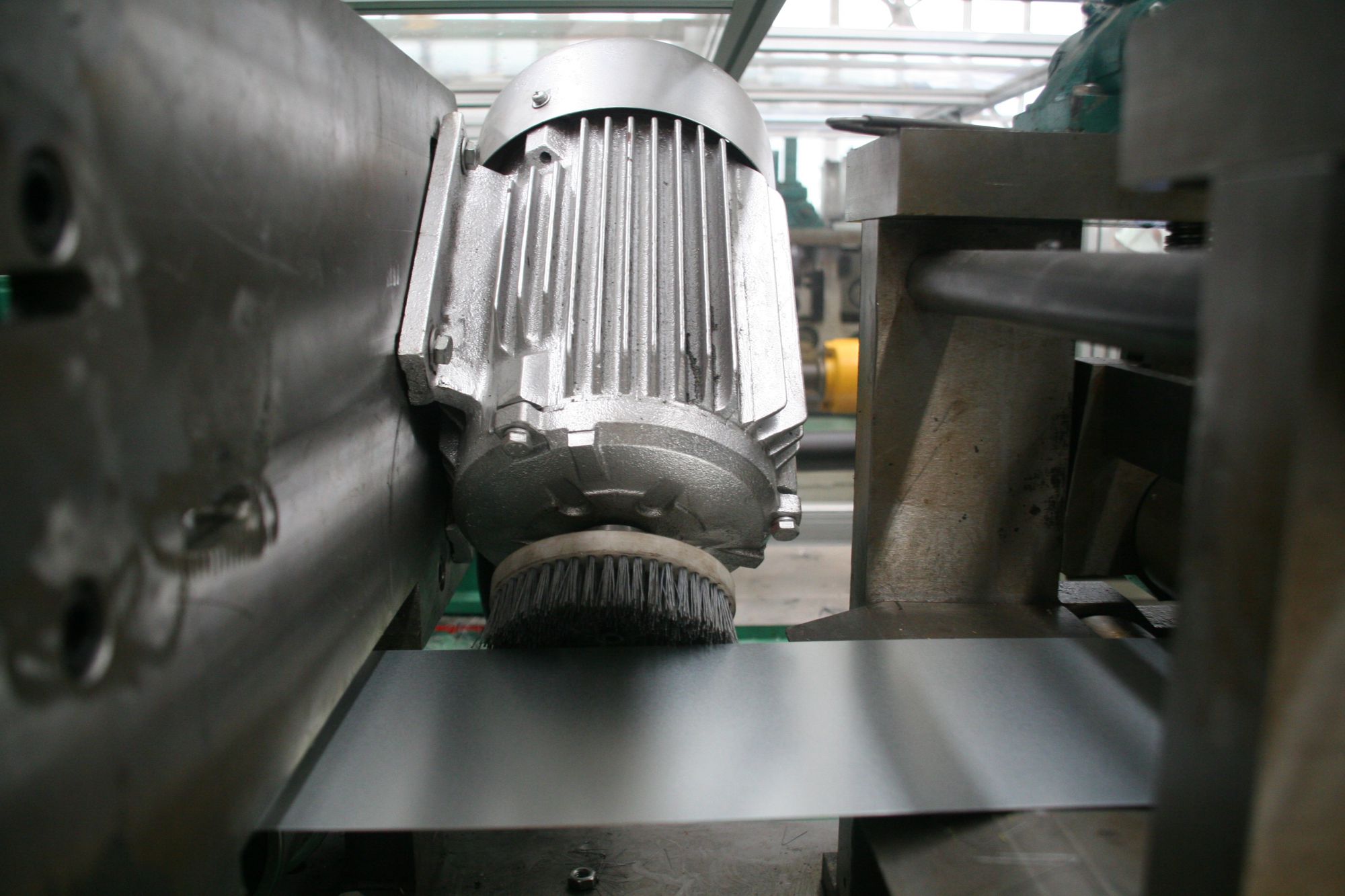

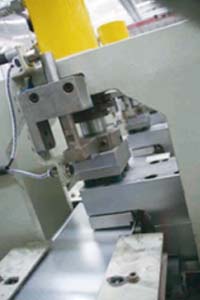

Components

bus-bar-roll-forming-line

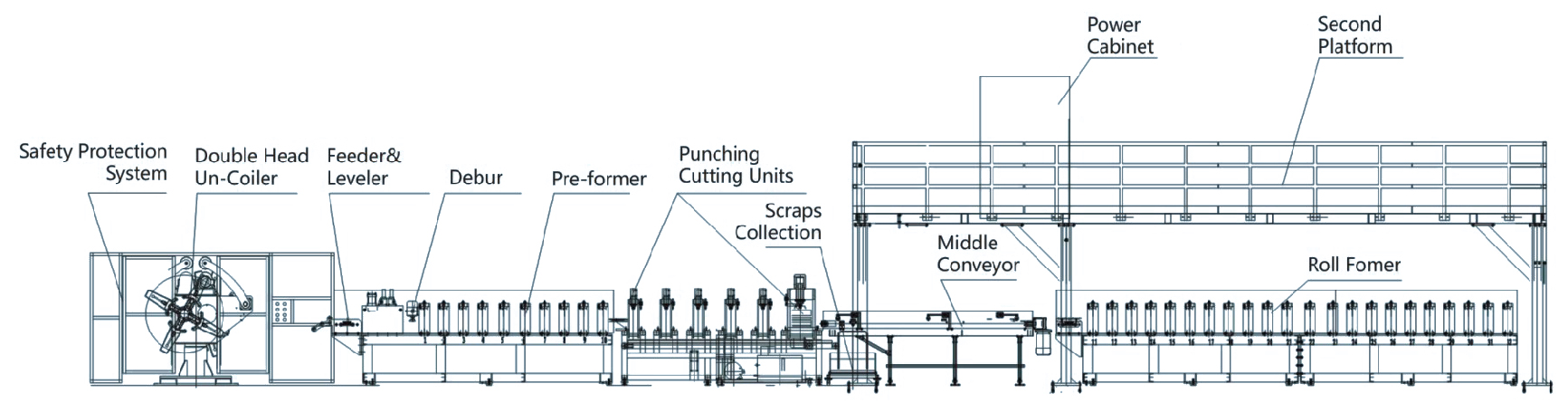

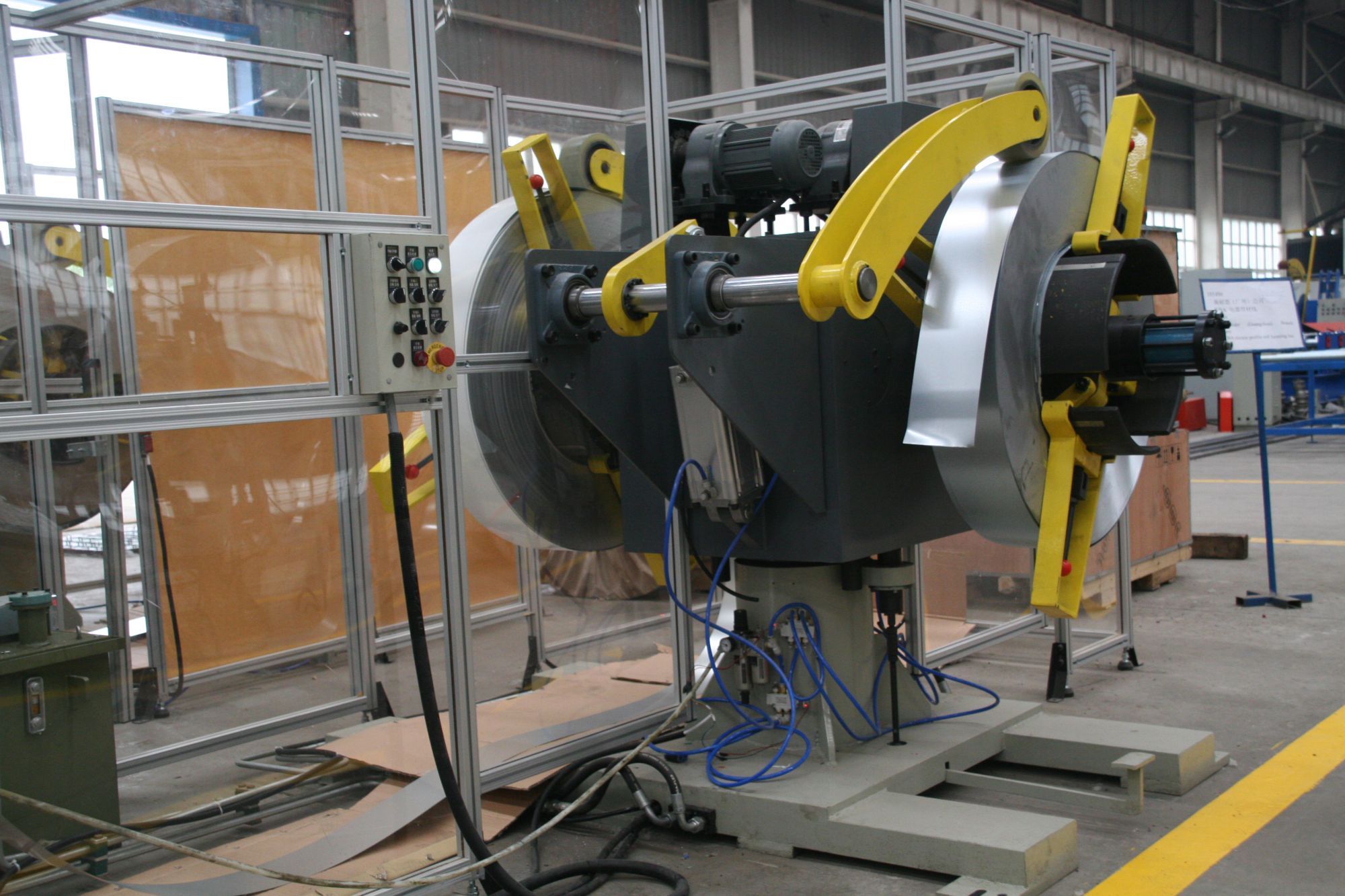

Coil loading→ Data set →Machine start→uncoiling→leveling→
pre-roll forming→ selective punching →cutting →convey →roll forming to bite seaming product→Products discharging .


Specification

Equipment overview:
1. .The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures stability of the machine. All the bearings on the top & bottom shafts are lubricated.
2. .Module torii is installed on NMT, adjust the distance through rotation leader screw.

Technical parameters:

Serial number Item Unit Parameters Remark


1


Suitable material
Type   galvanized coil
strength MPa ≤235MPa
Thickness mm 0.5mm
Coil internal diameter mm 500mm
Coil weight T 3
2 Specification mm 165
3 Line speed m/min 35
4 Roller material   D2 quenching treatment
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw About11
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) m
