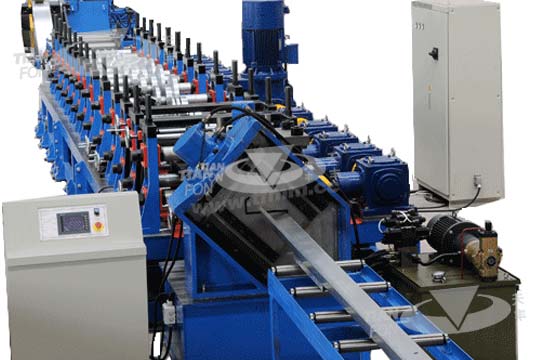

TF CZ Purlin Roll Forming Line

Equipment overview:
The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand.
Send E-mailget price
  • Product description
  • Product Details
  • Product Videos

Components

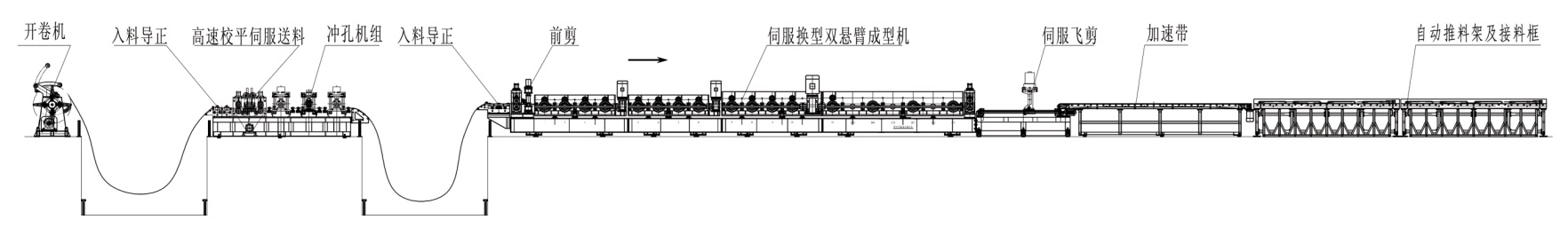

                                       Uncoil- leveling –roll forming-cutting –product rack


Specification

Equipment overview:
1.The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.





Technical parameters:

Serial number Item Unit Parameters Remark
1 Suitable material Type   galvanized steel
strength MPa ≤350
Thickness mm 2.0-3.0mm
Coil internal diameter mm 500,600
Coil weight T 5
2 Specification mm 120
3 Line speed m/min 15
4 Roller material   45# steel, with hard chrome on surface, polishing
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 15
8 Power supply   PLC automatic control system
9 Dimension(L*W*H) m

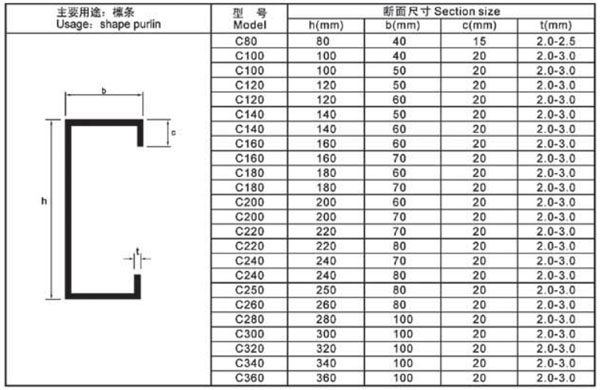

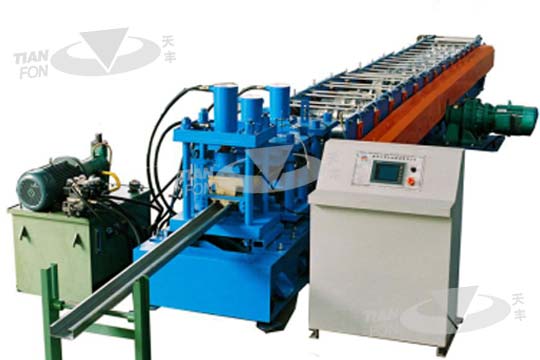

C PURLIN ROLL FORMER

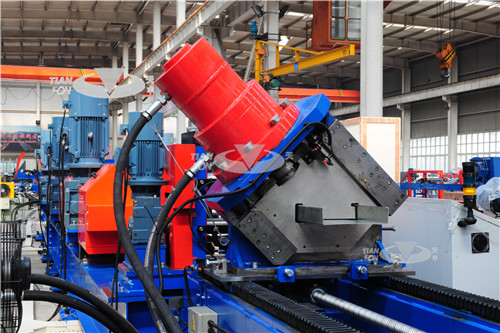

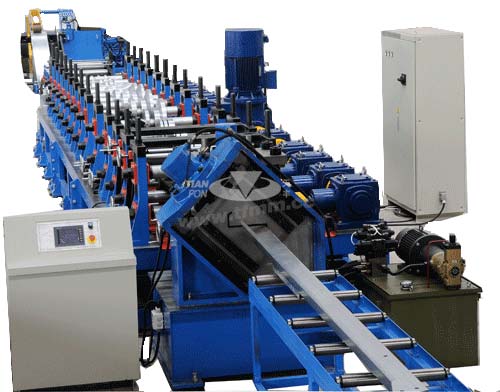

                                                                                                              TF CZ Purlin Roll Forming Line

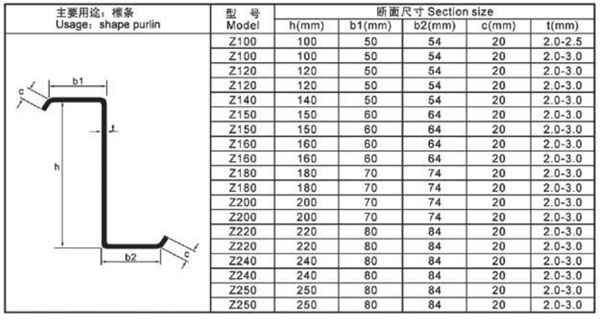

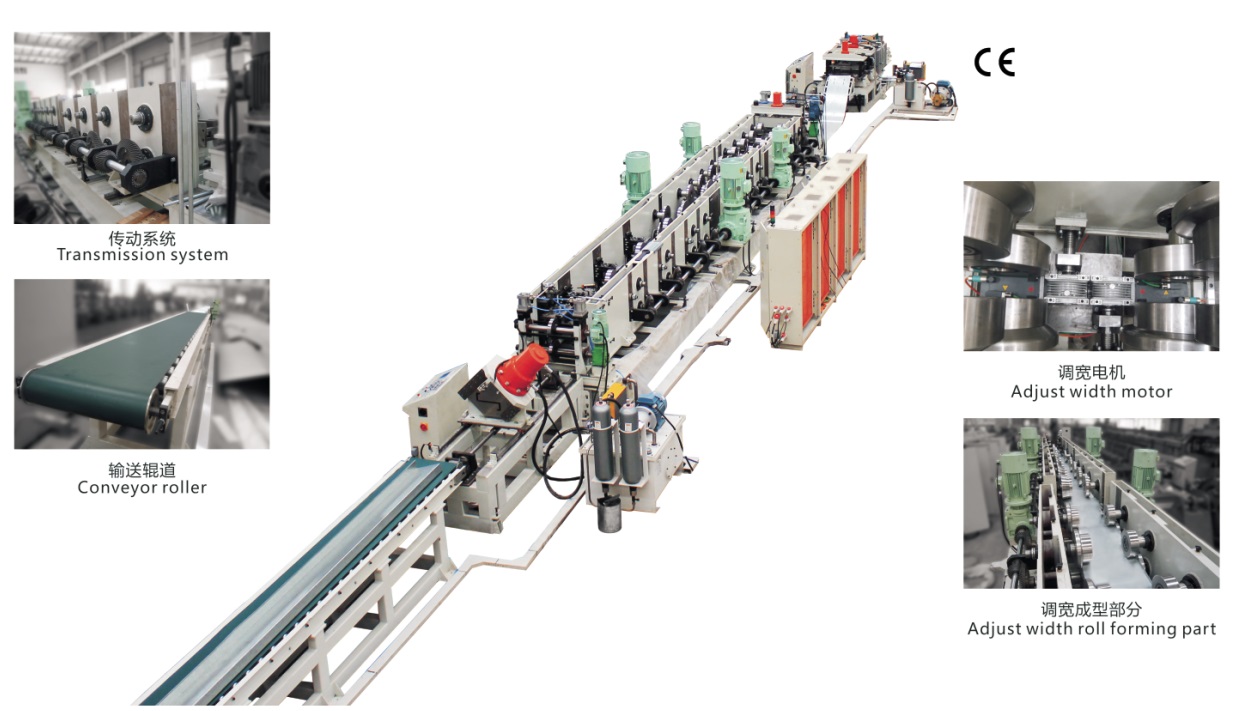

c PURLIN ROLL FORMER   z PURLIN MACHINE

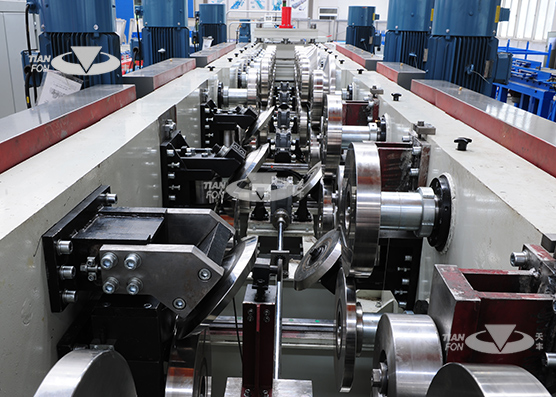

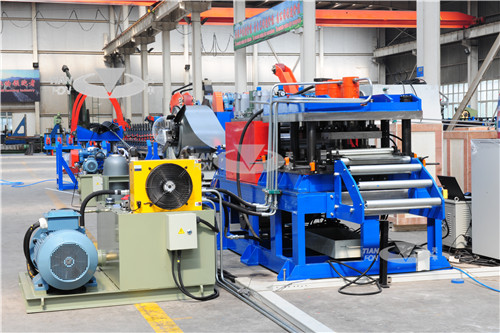

                                                   Feeding & leveing                                                                                                                        Roll forming machine

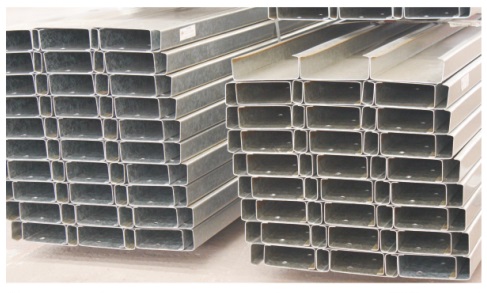

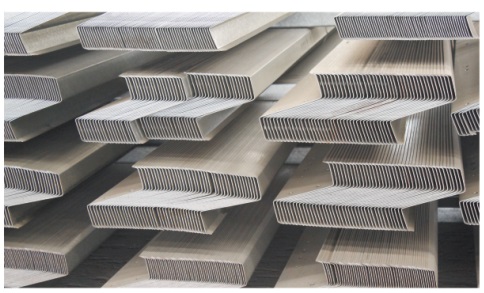

C purlin

Components





Product Videos
