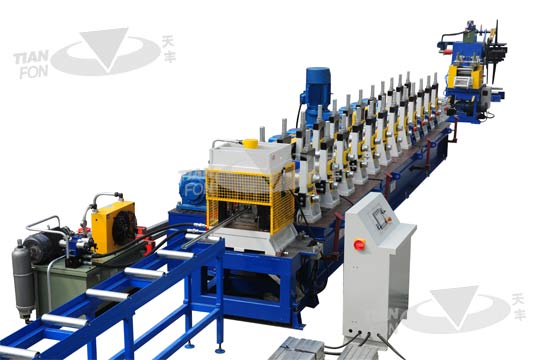

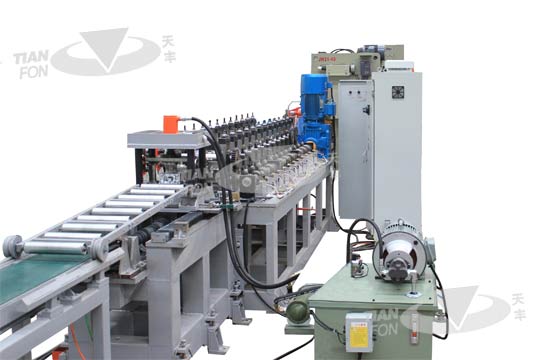

Shelf Drawbar Roll Forming Line

Equipment overview:

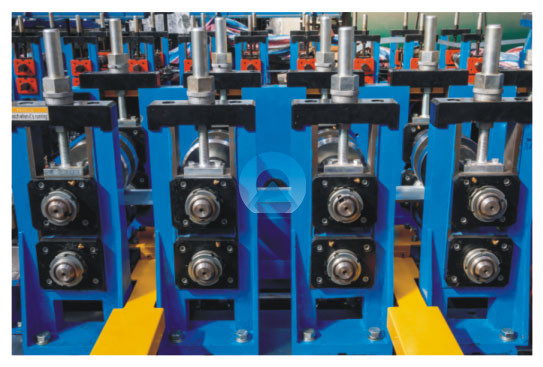

The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft.
  • Product description
  • Product Details

Components

coil→data set→machine start→uncoiling→leveling→pre-roll forming→selective punching→cutting→conveyor→roll forming to bite seaming→product

Specification

Equipment overview:

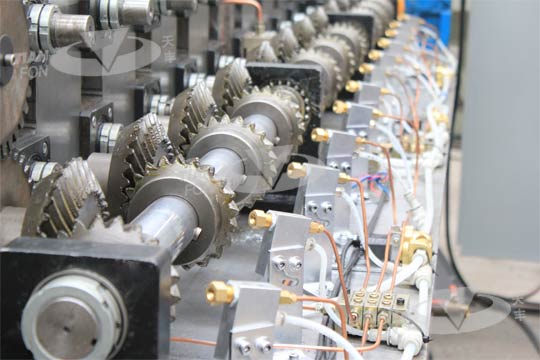

1. The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures stability of the machine. All the bearings on the top & bottom shafts are lubricated.
2. Module torii is installed on NMT, adjust the distance through rotation leader screw.

Technical parameters:

Serial number Item Unit Parameters Remark
1 Suitable material Type   Q235
strength MPa
Thickness mm 0.8mm
Coil internal diameter mm 500mm
Coil weight T 3
2 Specification mm 100-320
3 Line speed m/min 35
4 Roller material   D2 quenching treatment
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw About11
8 Electric control system   PLC automatic control system
9 Dimension(L*W*H) m
