TF1.2-27/90 silo roofing roll forming line

Equipment overview:
TF1.2-27/90 silo roofing roll forming line has many advantages on widely used , reliable structure , good tensile strength and convinent operating .The production line is possible to produce silo roofs with various width, length and shapes according to
  • Product description
  • Product Details

Components

 Uncoiling --leveling  --edge trimming  --slitting -- notching  --guillotine --punching --profile exchanging --second forming -- punching  --edge bending   -- stacking automaticlly

Specification

 1TF1.2-27/90 silo roofing production line has many advantages on  widely used , reliable structure , good tensile strength and convinent operating .

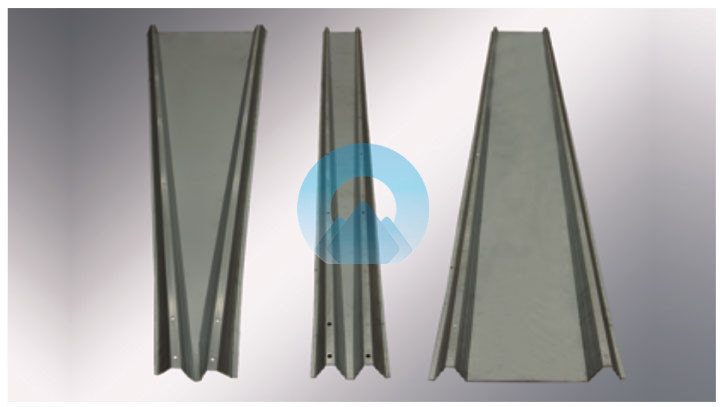

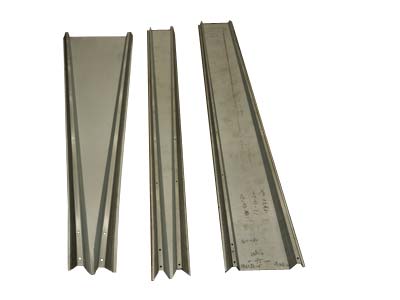

The production line is possible to produce silo roofs with  various width,  length and shapes according to change slitting angle , notching moulds and edge bending blocks to change profiles, also just change partial punching moulds to produce various profiles .

2. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.

Technical parameters:

 silo plate roll forming line
silo plate roll former

Serial number

Item

Unit

Parameters

Remark

1

Suitable material

Type







strength

MPa

235



Thickness

mm

0.85—1.2



Coil internal diameter

mm

1100--1700



Coil weight

T

5



2

Specification

mm

100-320



3

Line speed

m/min

10



4

Roller material



D2 quenching treatment



5

Roller driven type



External chain  transmission



6

Operating system



Windows2000



7

Total motor power

Kw

About 50



8

Electric control system



PLC automatic control system



9

 Dimension(L*W*H)

m

58X12X1.7

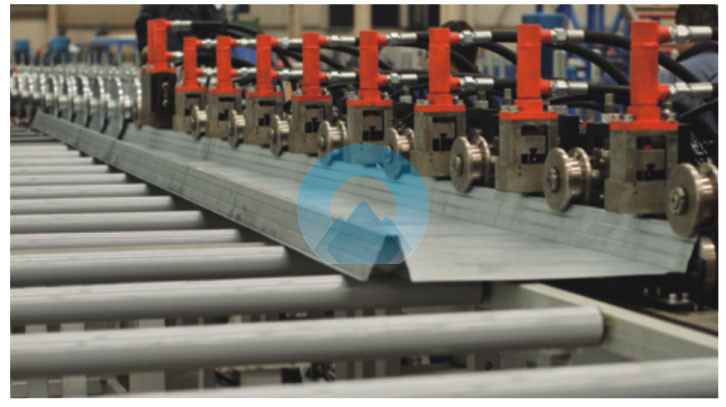

silo plate roll former

Components


TF silo roofing roll forming linetf silo roofing roll former
